gui::elements::SkiaBaseBlockRenderer Class Reference

A Skia-backed renderer implementation for a business_logic::elements::blocks::BaseBlock. More...

#include <SkiaBaseBlockRenderer.h>

Collaboration diagram for gui::elements::SkiaBaseBlockRenderer:

Public Member Functions
	SkiaBaseBlockRenderer ()=delete
virtual	~SkiaBaseBlockRenderer ()=delete
	SkiaBaseBlockRenderer (const SkiaBaseBlockRenderer &)=delete
SkiaBaseBlockRenderer &	operator= (const SkiaBaseBlockRenderer &)=delete
	SkiaBaseBlockRenderer (SkiaBaseBlockRenderer &&)=delete
SkiaBaseBlockRenderer &	operator= (SkiaBaseBlockRenderer &&)=delete

Static Public Member Functions
static void	render (business_logic::elements::blocks::BaseBlock *block, SkCanvas *canvas, int mouseX, int mouseY, bool isHovered)
	Renders a block on an SkCanvas.

Static Private Member Functions
static void	renderValueAboveBlock (const business_logic::elements::blocks::BaseBlock *block, SkCanvas *canvas, bool isHovered, const std::string &blockValue)
	Renders the value above the block.

Detailed Description

A Skia-backed renderer implementation for a business_logic::elements::blocks::BaseBlock.

Definition at line 29 of file SkiaBaseBlockRenderer.h.

Constructor & Destructor Documentation

SkiaBaseBlockRenderer() [1/3]

gui::elements::SkiaBaseBlockRenderer::SkiaBaseBlockRenderer ( )

delete

~SkiaBaseBlockRenderer()

virtual gui::elements::SkiaBaseBlockRenderer::~SkiaBaseBlockRenderer ( )

virtualdelete

SkiaBaseBlockRenderer() [2/3]

gui::elements::SkiaBaseBlockRenderer::SkiaBaseBlockRenderer ( const SkiaBaseBlockRenderer &  )

delete

SkiaBaseBlockRenderer() [3/3]

gui::elements::SkiaBaseBlockRenderer::SkiaBaseBlockRenderer ( SkiaBaseBlockRenderer &&  )

delete

Member Function Documentation

operator=() [1/2]

SkiaBaseBlockRenderer & gui::elements::SkiaBaseBlockRenderer::operator= ( const SkiaBaseBlockRenderer &  )

delete

operator=() [2/2]

SkiaBaseBlockRenderer & gui::elements::SkiaBaseBlockRenderer::operator= ( SkiaBaseBlockRenderer &&  )

delete

render()

void gui::elements::SkiaBaseBlockRenderer::render ( business_logic::elements::blocks::BaseBlock *  block, SkCanvas *  canvas, int  mouseX, int  mouseY, bool  isHovered  )

static

Renders a block on an SkCanvas.

Parameters

block	The block to render
canvas	The canvas to render the block on
mouseX	The x coordinate of the mouse
mouseY	The y coordinate of the mouse
isHovered	Whether the block is hovered

See also

business_logic::elements::blocks::BaseBlock::render

Definition at line 5 of file SkiaBaseBlockRenderer.cpp.

References gui::renderer::colors::BLOCK_BACKGROUND_COLOR, gui::renderer::colors::BLOCK_HOVERED_OUTLINE_COLOR, gui::renderer::colors::BLOCK_OUTLINE_COLOR, business_logic::constants::BLOCK_OUTLINE_WIDTH, gui::renderer::colors::BLOCK_PORT_OUTLINE_COLOR, business_logic::elements::blocks::BaseBlock::getBlockType(), business_logic::elements::blocks::BaseBlock::getBottomY(), business_logic::elements::blocks::BaseBlock::getCy(), gui::renderer::FontManager::getFontForVariant(), business_logic::elements::blocks::BaseBlock::getInputPorts(), business_logic::elements::blocks::BaseBlock::getLeftX(), business_logic::elements::blocks::BaseBlock::getOutputPorts(), business_logic::elements::blocks::BaseBlock::getPortCoordinates(), business_logic::elements::blocks::BaseBlock::getRightX(), business_logic::elements::blocks::BaseBlock::getTopY(), business_logic::elements::blocks::BaseBlock::getValueToRenderAboveBlock(), business_logic::elements::blocks::BaseBlock::getWidth(), business_logic::geometry::isCircleHovered(), business_logic::constants::PORT_CIRCLE_MARGIN, business_logic::constants::PORT_CIRCLE_OUTLINE_WIDTH, business_logic::constants::PORT_CIRCLE_RADIUS, business_logic::constants::PORT_CIRCLE_RADIUS_HALF, gui::renderer::colors::PURPLE_BLUE, renderValueAboveBlock(), gui::renderer::colors::TEXT_COLOR, business_logic::constants::TOTAL_PORT_HITBOX_RADIUS, business_logic::constants::TOTAL_PORT_RADIUS, and business_logic::constants::TOTAL_PORT_RADIUS_HALF.

Referenced by gui::elements::SkiaBlocksManagerRenderer::render().

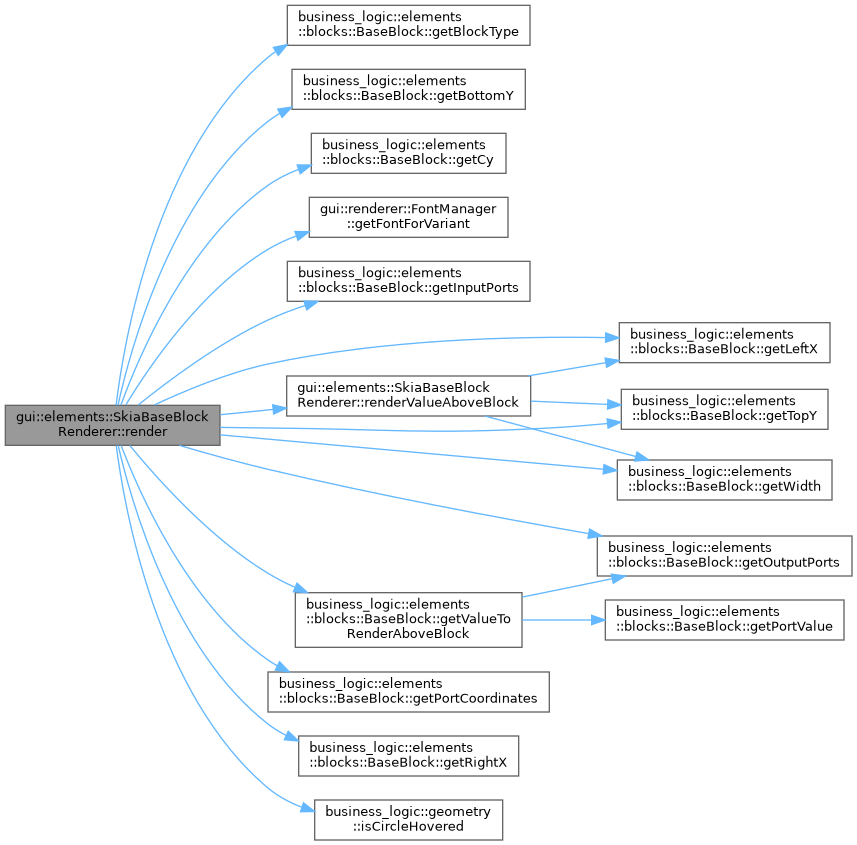

Here is the call graph for this function:

Here is the caller graph for this function:

renderValueAboveBlock()

void gui::elements::SkiaBaseBlockRenderer::renderValueAboveBlock ( const business_logic::elements::blocks::BaseBlock *  block, SkCanvas *  canvas, bool  isHovered, const std::string &  blockValue  )

staticprivate

Renders the value above the block.

Parameters

block	The block to render the value above
canvas	The canvas to render the value above the block on
isHovered	Whether the block is hovered
blockValue	The value to render above the block

Definition at line 231 of file SkiaBaseBlockRenderer.cpp.

References gui::renderer::FontManager::captionFont, business_logic::elements::blocks::BaseBlock::getLeftX(), business_logic::elements::blocks::BaseBlock::getTopY(), business_logic::elements::blocks::BaseBlock::getWidth(), and gui::renderer::FontManager::textFontFillPaint.

Referenced by render().

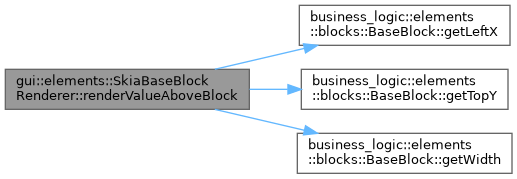

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• /home/runner/work/Skia-Arithmetic-Calculator/Skia-Arithmetic-Calculator/src/gui_app/elements/SkiaBaseBlockRenderer.h
• /home/runner/work/Skia-Arithmetic-Calculator/Skia-Arithmetic-Calculator/src/gui_app/elements/SkiaBaseBlockRenderer.cpp
