Utility class that holds static font instances and handles scaling them on window resizes. More...

#include <FontManager.h>

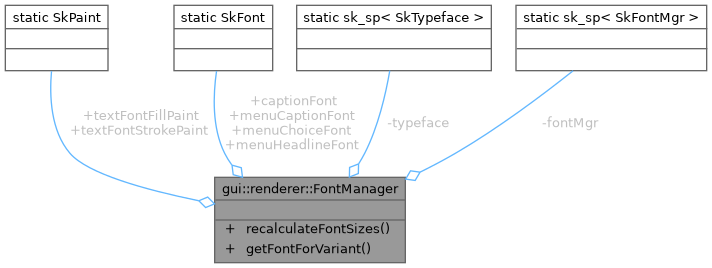

Collaboration diagram for gui::renderer::FontManager:

Static Public Member Functions
static void	recalculateFontSizes (float aspectX, float aspectY, float xScale, float yScale)
	Recalculates the font sizes.

static const SkFont &	getFontForVariant (const business_logic::components::UIText::Variant &variant)
	Gets the font for the given variant.

Static Public Attributes
static SkPaint	textFontFillPaint
	The paint for the text font fill.

static SkPaint	textFontStrokePaint
	The paint for the text font stroke.

static SkFont	menuChoiceFont
	The font for the menu choice font.

static SkFont	menuHeadlineFont
	The font for the menu headline font.

static SkFont	menuCaptionFont
	The font for the menu caption font.

static SkFont	captionFont
	The font for the caption font.

Static Private Attributes
static sk_sp< SkTypeface >	typeface
	The typeface for the text font.

static sk_sp< SkFontMgr >	fontMgr
	The font manager.

Detailed Description

Utility class that holds static font instances and handles scaling them on window resizes.

Definition at line 38 of file FontManager.h.

Member Function Documentation

◆ getFontForVariant()

const SkFont & gui::renderer::FontManager::getFontForVariant ( const business_logic::components::UIText::Variant & variant )

static

Gets the font for the given variant.

Parameters

variant The variant of the label

Returns: The font for the given variant

Definition at line 89 of file FontManager.cpp.

References business_logic::components::UIText::Caption, captionFont, business_logic::components::UIText::Choice, business_logic::components::UIText::Headline, business_logic::components::UIText::MenuCaption, menuCaptionFont, menuChoiceFont, and menuHeadlineFont.

Referenced by gui::elements::SkiaBaseBlockRenderer::render().

Here is the caller graph for this function:

◆ recalculateFontSizes()

void gui::renderer::FontManager::recalculateFontSizes	(	float	aspectX,
		float	aspectY,
		float	xScale,
		float	yScale
	)

static

Recalculates the font sizes.

This method adapts the font sizes by multiplying them by the a scale factor.

The scale factor is calculated according to the following formula:

scaling = min(aspectX, aspectY) * min(xScale, yScale)

Parameters

aspectX	The aspect ratio of the window width to the base width (constants::FONT_ASPECT_BASE_WINDOW_WIDTH)
aspectY	The aspect ratio of the window height to the base height (constants::FONT_ASPECT_BASE_WINDOW_HEIGHT)
xScale	The scale factor for the X axis
yScale	The scale factor for the Y axis

Definition at line 77 of file FontManager.cpp.

References gui::constants::CAPTION_FONT_SIZE_BASE, captionFont, gui::constants::MENU_CAPTION_FONT_SIZE_BASE, gui::constants::MENU_CHOICE_FONT_SIZE_BASE, gui::constants::MENU_HEADLINE_FONT_SIZE_BASE, menuCaptionFont, menuChoiceFont, and menuHeadlineFont.

Referenced by gui::renderer::SkiaRendererImpl::handleWindowResized().

Here is the caller graph for this function:

Member Data Documentation

◆ captionFont

SkFont gui::renderer::FontManager::captionFont

static

Initial value:

= [] {
        SkFont font;
        font.setSubpixel(true);
        font.setSize(gui::constants::CAPTION_FONT_SIZE_BASE);
        font.setTypeface(FontManager::typeface);

        return font;
    }()

The font for the caption font.

Definition at line 68 of file FontManager.h.

Referenced by getFontForVariant(), recalculateFontSizes(), and gui::elements::SkiaBaseBlockRenderer::renderValueAboveBlock().

◆ fontMgr

sk_sp< SkFontMgr > gui::renderer::FontManager::fontMgr

staticprivate

Initial value:

=

SkFontMgr_New_FontConfig(nullptr, SkFontScanner_Make_FreeType())

The font manager.

Definition at line 105 of file FontManager.h.

◆ menuCaptionFont

SkFont gui::renderer::FontManager::menuCaptionFont

static

Initial value:

= [] {
        SkFont font;
        font.setSubpixel(true);
        font.setSize(gui::constants::MENU_CAPTION_FONT_SIZE_BASE);
        font.setTypeface(FontManager::typeface);

        return font;
    }()

The font for the menu caption font.

Definition at line 63 of file FontManager.h.

Referenced by getFontForVariant(), and recalculateFontSizes().

◆ menuChoiceFont

SkFont gui::renderer::FontManager::menuChoiceFont

static

Initial value:

= [] {
        SkFont font;
        font.setSubpixel(true);
        font.setSize(gui::constants::MENU_CHOICE_FONT_SIZE_BASE);
        font.setTypeface(FontManager::typeface);

        return font;
    }()

The font for the menu choice font.

Definition at line 53 of file FontManager.h.

Referenced by getFontForVariant(), and recalculateFontSizes().

◆ menuHeadlineFont

SkFont gui::renderer::FontManager::menuHeadlineFont

static

Initial value:

= [] {
        SkFont font;
        font.setSubpixel(true);
        font.setSize(gui::constants::MENU_HEADLINE_FONT_SIZE_BASE);
        font.setTypeface(FontManager::typeface);
        font.setEmbolden(true);

        return font;
    }()

The font for the menu headline font.

Definition at line 58 of file FontManager.h.

Referenced by getFontForVariant(), and recalculateFontSizes().

◆ textFontFillPaint

SkPaint gui::renderer::FontManager::textFontFillPaint

static

Initial value:

= [] {
        SkPaint paint;


        paint.setColor(colors::TEXT_COLOR);
        paint.setStyle(SkPaint::kFill_Style);
        paint.setAntiAlias(true);

        return paint;
    }()

The paint for the text font fill.

Definition at line 43 of file FontManager.h.

Referenced by gui::elements::SkiaBaseBlockRenderer::renderValueAboveBlock().

◆ textFontStrokePaint

SkPaint gui::renderer::FontManager::textFontStrokePaint

static

Initial value:

= [] {
        SkPaint paint;


        paint.setColor(colors::TEXT_OUTLINE_COLOR);
        paint.setStyle(SkPaint::kStroke_Style);
        paint.setStrokeWidth(4);
        paint.setAntiAlias(true);

        return paint;
    }()

The paint for the text font stroke.

Definition at line 48 of file FontManager.h.

◆ typeface

sk_sp< SkTypeface > gui::renderer::FontManager::typeface

staticprivate

Initial value:

=

fontMgr->legacyMakeTypeface(nullptr, SkFontStyle::Normal())

gui::renderer::FontManager::fontMgr

static sk_sp< SkFontMgr > fontMgr

The font manager.

Definition FontManager.h:105

The typeface for the text font.

Definition at line 100 of file FontManager.h.

The documentation for this class was generated from the following files:

/home/runner/work/Skia-Arithmetic-Calculator/Skia-Arithmetic-Calculator/src/gui_app/renderer/FontManager.h
/home/runner/work/Skia-Arithmetic-Calculator/Skia-Arithmetic-Calculator/src/gui_app/renderer/FontManager.cpp
