The abstract base class for implementing a window. More...

#include <WindowBase.h>

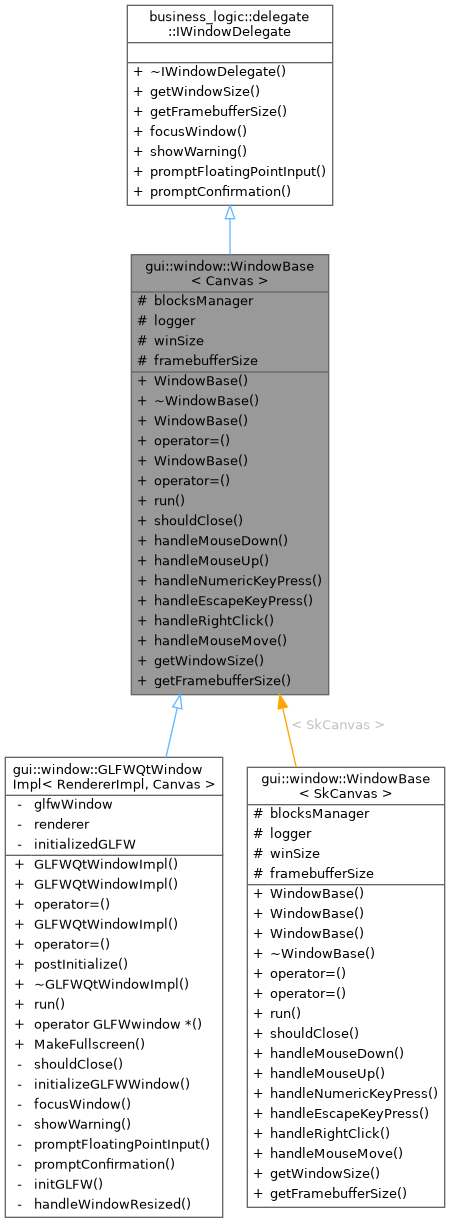

Inheritance diagram for gui::window::WindowBase< Canvas >:

Collaboration diagram for gui::window::WindowBase< Canvas >:

Public Member Functions
	WindowBase (int width, int height, std::shared_ptr< spdlog::logger > logger)

	~WindowBase () override=default

	WindowBase (const WindowBase &)=delete

WindowBase &	operator= (const WindowBase &)=delete

	WindowBase (WindowBase &&) noexcept=default

WindowBase &	operator= (WindowBase &&) noexcept=default

virtual void	run ()=0
	Runs the main window loop.

virtual bool	shouldClose () const =0
	Whether the window should close.

void	handleMouseDown ()
	Handles the mouse down event; should be called internally by the window implementation.

void	handleMouseUp ()
	Handles the mouse up event; should be called internally by the window implementation.

void	handleNumericKeyPress (int number)
	Handles the numeric key press event; should be called internally by the window implementation.

void	handleEscapeKeyPress ()
	Handles the ESC key press event; should be called internally by the window implementation.

void	handleRightClick ()
	Handles the right click event; should be called internally by the window implementation.

void	handleMouseMove (int x, int y)
	Handles the mouse move event; should be called internally by the window implementation.

business_logic::geometry::Size2D	getWindowSize () override
	Get the window size.

business_logic::geometry::Size2D	getFramebufferSize () override
	Get the framebuffer size.

Public Member Functions inherited from business_logic::delegate::IWindowDelegate
virtual	~IWindowDelegate ()=default

virtual void	focusWindow ()=0
	Focus the window.

virtual void	showWarning (const std::string &title, const std::string &message)=0
	Show a warning message.

virtual std::optional< FloatingPoint >	promptFloatingPointInput (const std::string &title, const std::string &message, const std::optional< FloatingPoint > &defaultValue)=0
	Prompt for a floating point input.

virtual bool	promptConfirmation (const std::string &title, const std::string &message)=0
	Prompt for user confirmation.

Protected Attributes
std::shared_ptr< business_logic::BlocksManager >	blocksManager

std::shared_ptr< spdlog::logger >	logger

business_logic::geometry::Size2D	winSize

business_logic::geometry::Size2D	framebufferSize

Detailed Description

template<typename Canvas>
class gui::window::WindowBase< Canvas >

The abstract base class for implementing a window.

See also: business_logic::delegate::IWindowDelegate

Template Parameters

Canvas The type of the canvas

Definition at line 27 of file WindowBase.h.

Constructor & Destructor Documentation

◆ WindowBase() [1/3]

template<typename Canvas >

gui::window::WindowBase< Canvas >::WindowBase	(	int	width,
		int	height,
		std::shared_ptr< spdlog::logger >	logger
	)

inline

Definition at line 29 of file WindowBase.h.

◆ ~WindowBase()

template<typename Canvas >

gui::window::WindowBase< Canvas >::~WindowBase ( )

overridedefault

◆ WindowBase() [2/3]

template<typename Canvas >

gui::window::WindowBase< Canvas >::WindowBase ( const WindowBase< Canvas > & )

delete

◆ WindowBase() [3/3]

template<typename Canvas >

gui::window::WindowBase< Canvas >::WindowBase ( WindowBase< Canvas > && )

defaultnoexcept

Member Function Documentation

◆ getFramebufferSize()

template<typename Canvas >

business_logic::geometry::Size2D gui::window::WindowBase< Canvas >::getFramebufferSize ( )

inlineoverridevirtual

Get the framebuffer size.

Returns: The framebuffer size

Implements business_logic::delegate::IWindowDelegate.

Definition at line 141 of file WindowBase.h.

References gui::window::WindowBase< Canvas >::framebufferSize.

Referenced by gui::renderer::SkiaRendererImpl::reinitializeSurface().

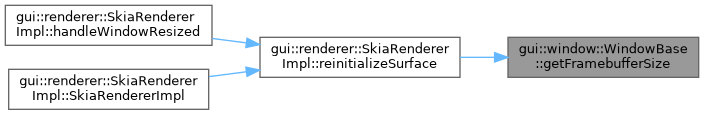

Here is the caller graph for this function:

◆ getWindowSize()

template<typename Canvas >

business_logic::geometry::Size2D gui::window::WindowBase< Canvas >::getWindowSize ( )

inlineoverridevirtual

Get the window size.

Returns: The window size

Implements business_logic::delegate::IWindowDelegate.

Definition at line 136 of file WindowBase.h.

References gui::window::WindowBase< Canvas >::winSize.

Referenced by gui::renderer::SkiaRendererImpl::handleWindowResized(), gui::renderer::SkiaRendererImpl::reinitializeSurface(), and gui::renderer::SkiaRendererImpl::render().

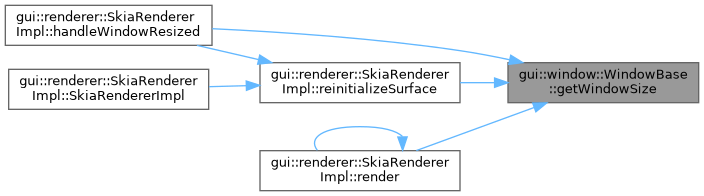

Here is the caller graph for this function:

◆ handleEscapeKeyPress()

template<typename Canvas >

void gui::window::WindowBase< Canvas >::handleEscapeKeyPress ( )

inline

Handles the ESC key press event; should be called internally by the window implementation.

Definition at line 78 of file WindowBase.h.

References gui::window::WindowBase< Canvas >::blocksManager.

Referenced by gui::window::GLFWQtWindowImpl< RendererImpl, Canvas >::initializeGLFWWindow().

Here is the caller graph for this function:

◆ handleMouseDown()

template<typename Canvas >

void gui::window::WindowBase< Canvas >::handleMouseDown ( )

inline

Handles the mouse down event; should be called internally by the window implementation.

Definition at line 60 of file WindowBase.h.

References gui::window::WindowBase< Canvas >::blocksManager, and gui::window::WindowBase< Canvas >::handleMouseDown().

Referenced by gui::window::WindowBase< Canvas >::handleMouseDown(), and gui::window::GLFWQtWindowImpl< RendererImpl, Canvas >::initializeGLFWWindow().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ handleMouseMove()

template<typename Canvas >

void gui::window::WindowBase< Canvas >::handleMouseMove	(	int	x,
		int	y
	)

inline

Handles the mouse move event; should be called internally by the window implementation.

Definition at line 131 of file WindowBase.h.

References gui::window::WindowBase< Canvas >::blocksManager.

Referenced by gui::window::GLFWQtWindowImpl< RendererImpl, Canvas >::initializeGLFWWindow(), and gui::window::GLFWQtWindowImpl< RendererImpl, Canvas >::postInitialize().

Here is the caller graph for this function:

◆ handleMouseUp()

template<typename Canvas >

void gui::window::WindowBase< Canvas >::handleMouseUp ( )

inline

Handles the mouse up event; should be called internally by the window implementation.

Definition at line 66 of file WindowBase.h.

References gui::window::WindowBase< Canvas >::blocksManager.

Referenced by gui::window::GLFWQtWindowImpl< RendererImpl, Canvas >::initializeGLFWWindow().

Here is the caller graph for this function:

◆ handleNumericKeyPress()

template<typename Canvas >

void gui::window::WindowBase< Canvas >::handleNumericKeyPress ( int number )

inline

Handles the numeric key press event; should be called internally by the window implementation.

Definition at line 72 of file WindowBase.h.

References gui::window::WindowBase< Canvas >::blocksManager.

Referenced by gui::window::GLFWQtWindowImpl< RendererImpl, Canvas >::initializeGLFWWindow().

Here is the caller graph for this function:

◆ handleRightClick()

template<typename Canvas >

void gui::window::WindowBase< Canvas >::handleRightClick ( )

inline

Handles the right click event; should be called internally by the window implementation.

Definition at line 84 of file WindowBase.h.

References gui::window::WindowBase< Canvas >::blocksManager, business_logic::input::InputChoice< T >::displayName, and gui::window::WindowBase< Canvas >::logger.

Referenced by gui::window::GLFWQtWindowImpl< RendererImpl, Canvas >::initializeGLFWWindow().

Here is the caller graph for this function:

◆ operator=() [1/2]

template<typename Canvas >

WindowBase & gui::window::WindowBase< Canvas >::operator= ( const WindowBase< Canvas > & )

delete

◆ operator=() [2/2]

template<typename Canvas >

WindowBase & gui::window::WindowBase< Canvas >::operator= ( WindowBase< Canvas > && )

defaultnoexcept

◆ run()

template<typename Canvas >

virtual void gui::window::WindowBase< Canvas >::run ( )

pure virtual

Runs the main window loop.

Implemented in gui::window::GLFWQtWindowImpl< RendererImpl, Canvas >.

◆ shouldClose()

template<typename Canvas >

virtual bool gui::window::WindowBase< Canvas >::shouldClose ( ) const

pure virtual

Whether the window should close.

Returns: bool True if the window should close, false otherwise

Implemented in gui::window::GLFWQtWindowImpl< RendererImpl, Canvas >.

Member Data Documentation

◆ blocksManager

template<typename Canvas >

std::shared_ptr<business_logic::BlocksManager> gui::window::WindowBase< Canvas >::blocksManager

protected

The blocks manager, this class will pass it the interaction events

Definition at line 147 of file WindowBase.h.

Referenced by gui::window::WindowBase< Canvas >::handleEscapeKeyPress(), gui::window::WindowBase< Canvas >::handleMouseDown(), gui::window::WindowBase< Canvas >::handleMouseMove(), gui::window::WindowBase< Canvas >::handleMouseUp(), gui::window::WindowBase< Canvas >::handleNumericKeyPress(), gui::window::WindowBase< Canvas >::handleRightClick(), and gui::window::GLFWQtWindowImpl< RendererImpl, Canvas >::initializeGLFWWindow().

◆ framebufferSize

template<typename Canvas >

business_logic::geometry::Size2D gui::window::WindowBase< Canvas >::framebufferSize

protected

The framebuffer size

Definition at line 162 of file WindowBase.h.

Referenced by gui::window::WindowBase< Canvas >::getFramebufferSize().

◆ logger

template<typename Canvas >

std::shared_ptr<spdlog::logger> gui::window::WindowBase< Canvas >::logger

protected

The logger for the window

Definition at line 152 of file WindowBase.h.

Referenced by gui::window::WindowBase< Canvas >::handleRightClick(), gui::window::GLFWQtWindowImpl< RendererImpl, Canvas >::initializeGLFWWindow(), gui::window::GLFWQtWindowImpl< RendererImpl, Canvas >::run(), and gui::window::GLFWQtWindowImpl< RendererImpl, Canvas >::~GLFWQtWindowImpl().

◆ winSize

template<typename Canvas >

business_logic::geometry::Size2D gui::window::WindowBase< Canvas >::winSize

protected

The window size

Definition at line 157 of file WindowBase.h.

Referenced by gui::window::WindowBase< Canvas >::getWindowSize().

The documentation for this class was generated from the following file:

/home/runner/work/Skia-Arithmetic-Calculator/Skia-Arithmetic-Calculator/src/gui_app/window/WindowBase.h
